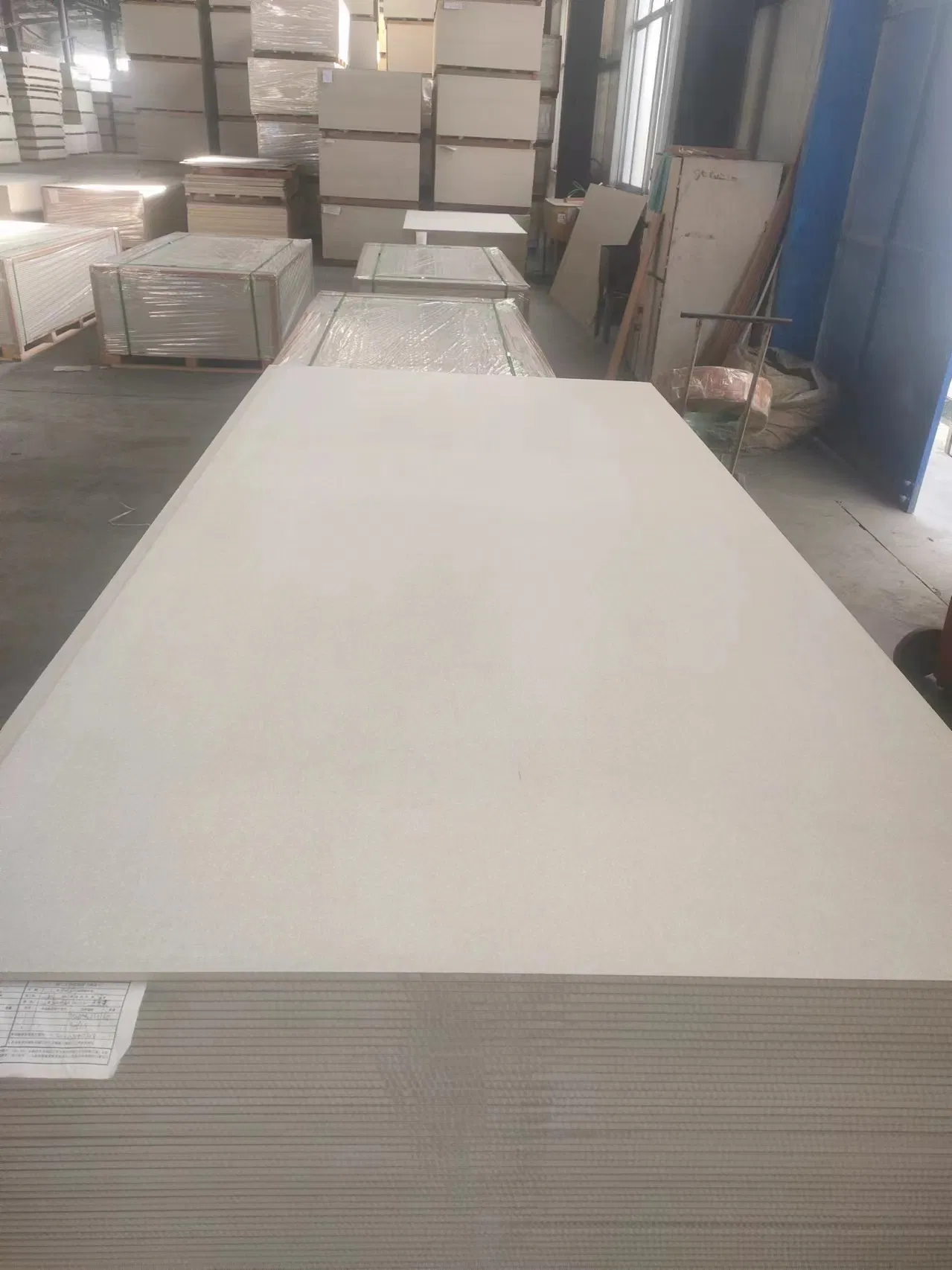

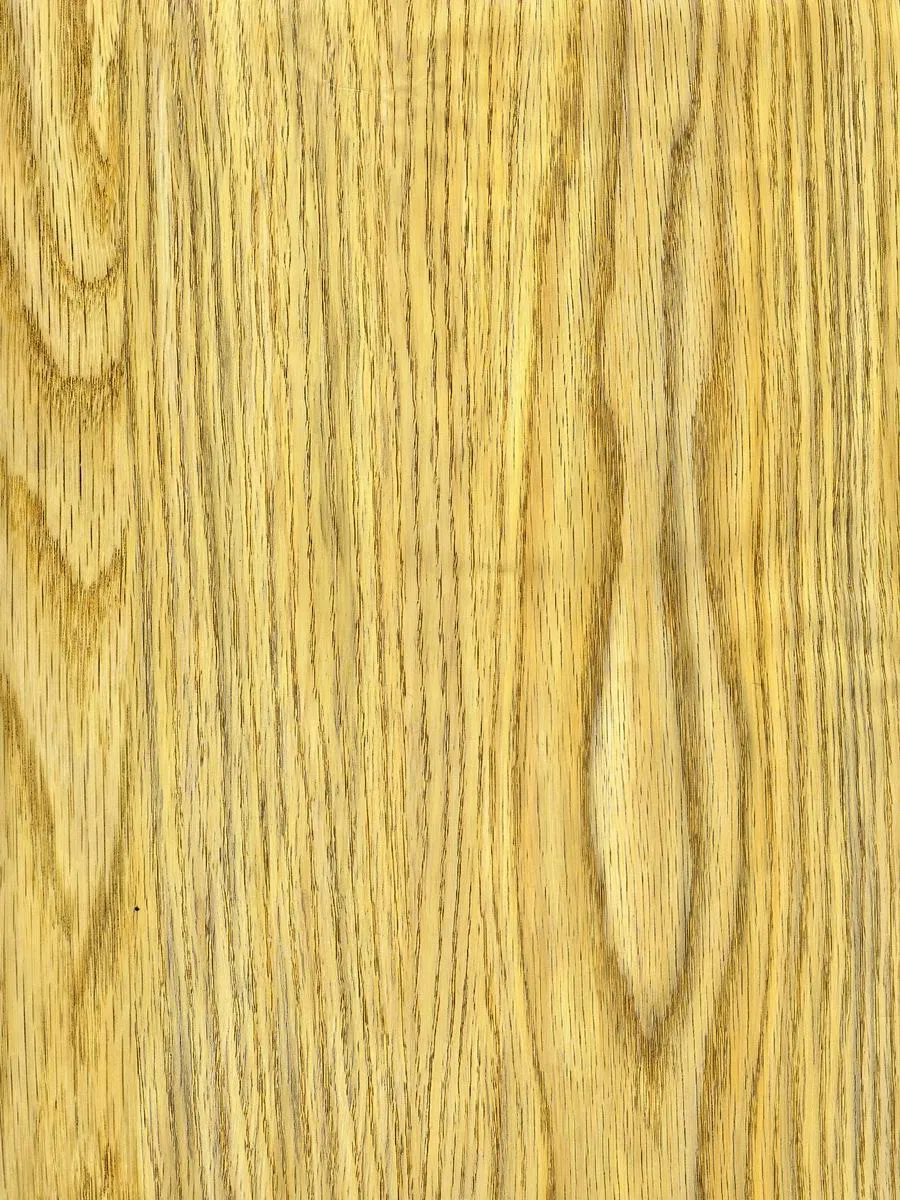

High Gloss UV Coating Board

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Info.

Model NO.

1200*2400mm, 1220*2440mm, 1200*3000mm, 1220*3000mm

Thickness

4.5-30mm

Density

1.2-1.4G/Cm3

Colour

Stone Texture, Wood Grain

Materials

Quartzs Sand, Imported Wood Pulp

Anti Bending Strength

>12MPa

Edge

Square

Surface Finishing

Sanding, Polished

Usage

Wall Decoration

Incombustibility

240 Minutes

Certifications

CE / ASTMC / ISO

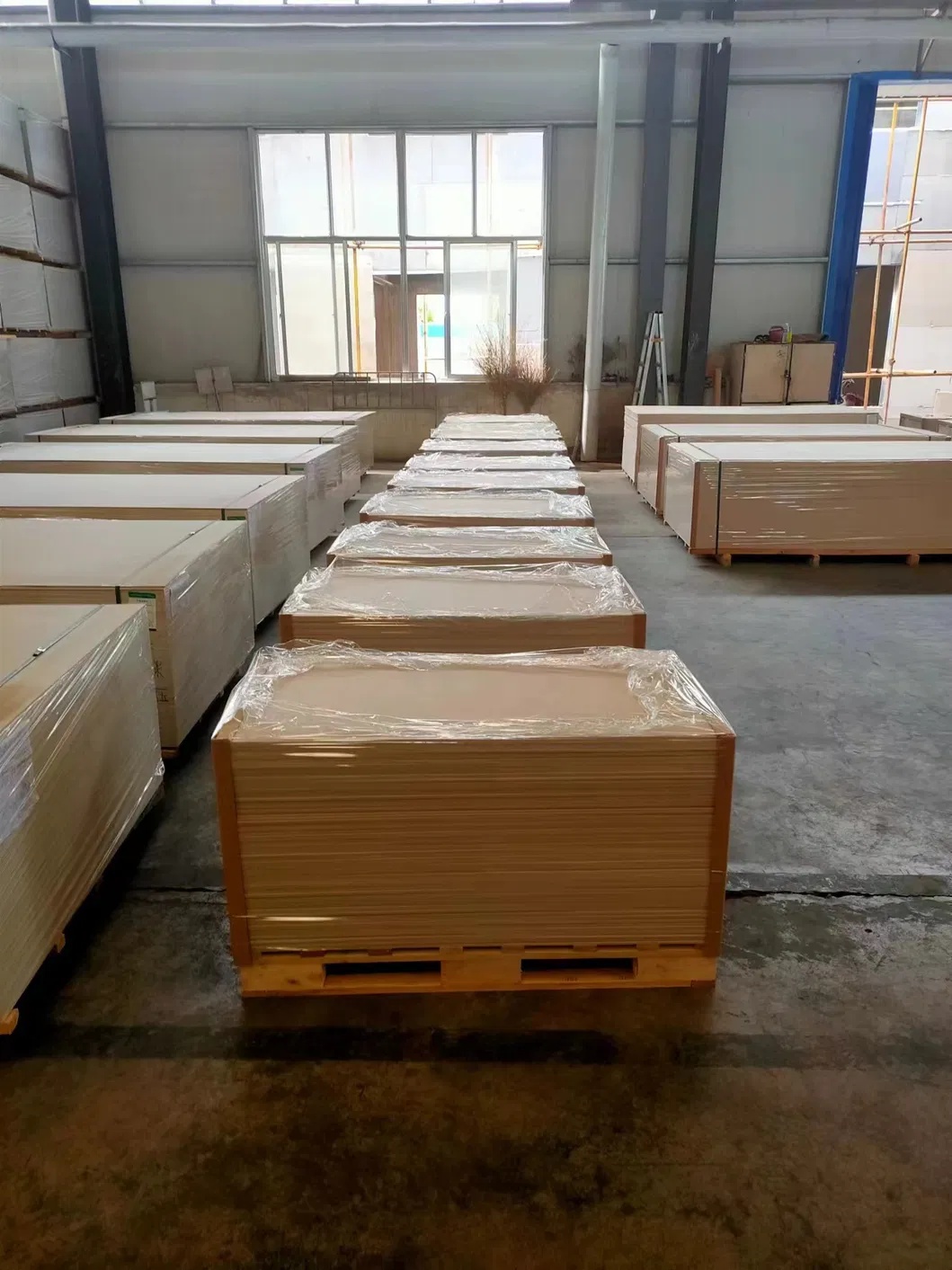

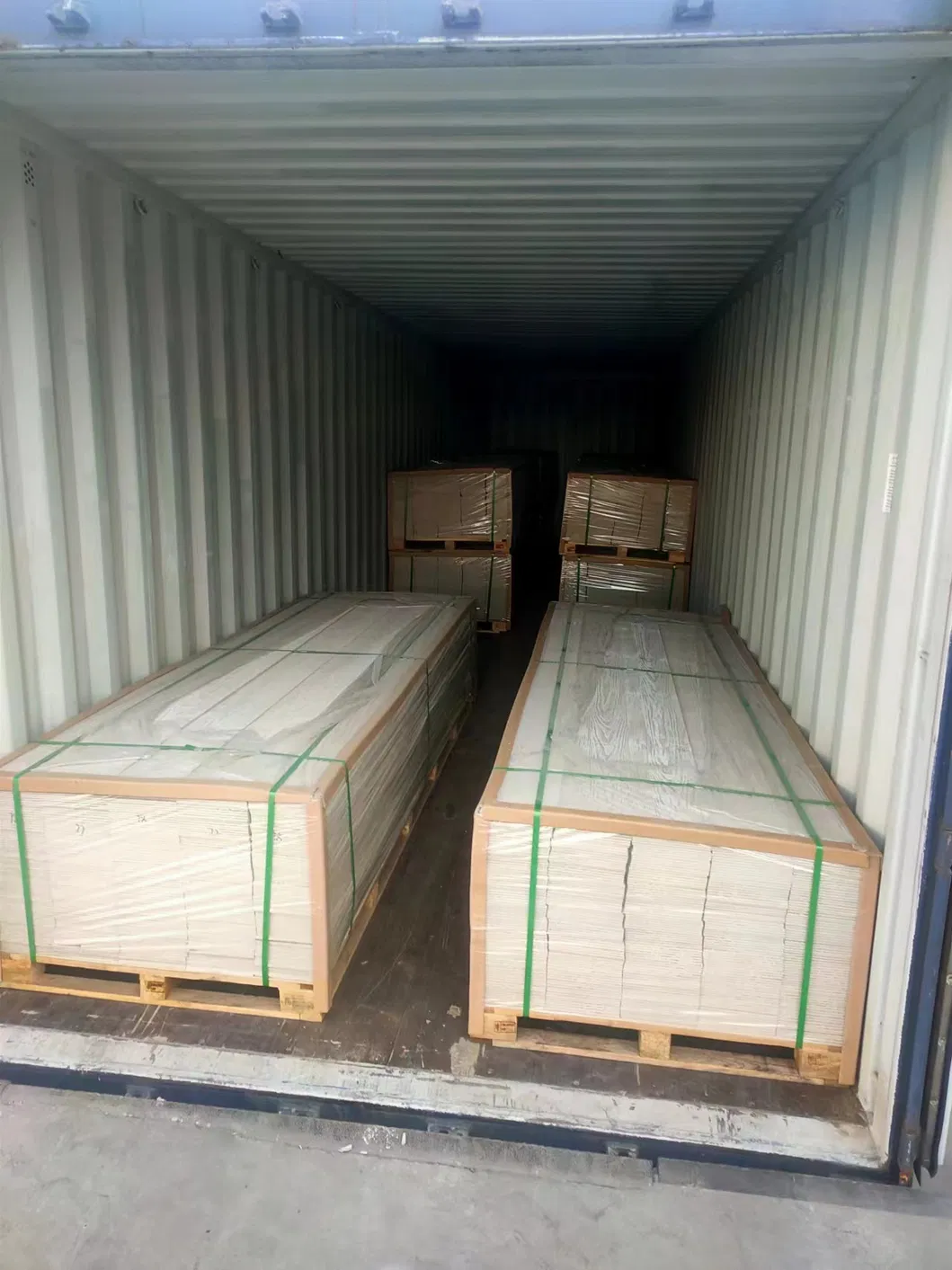

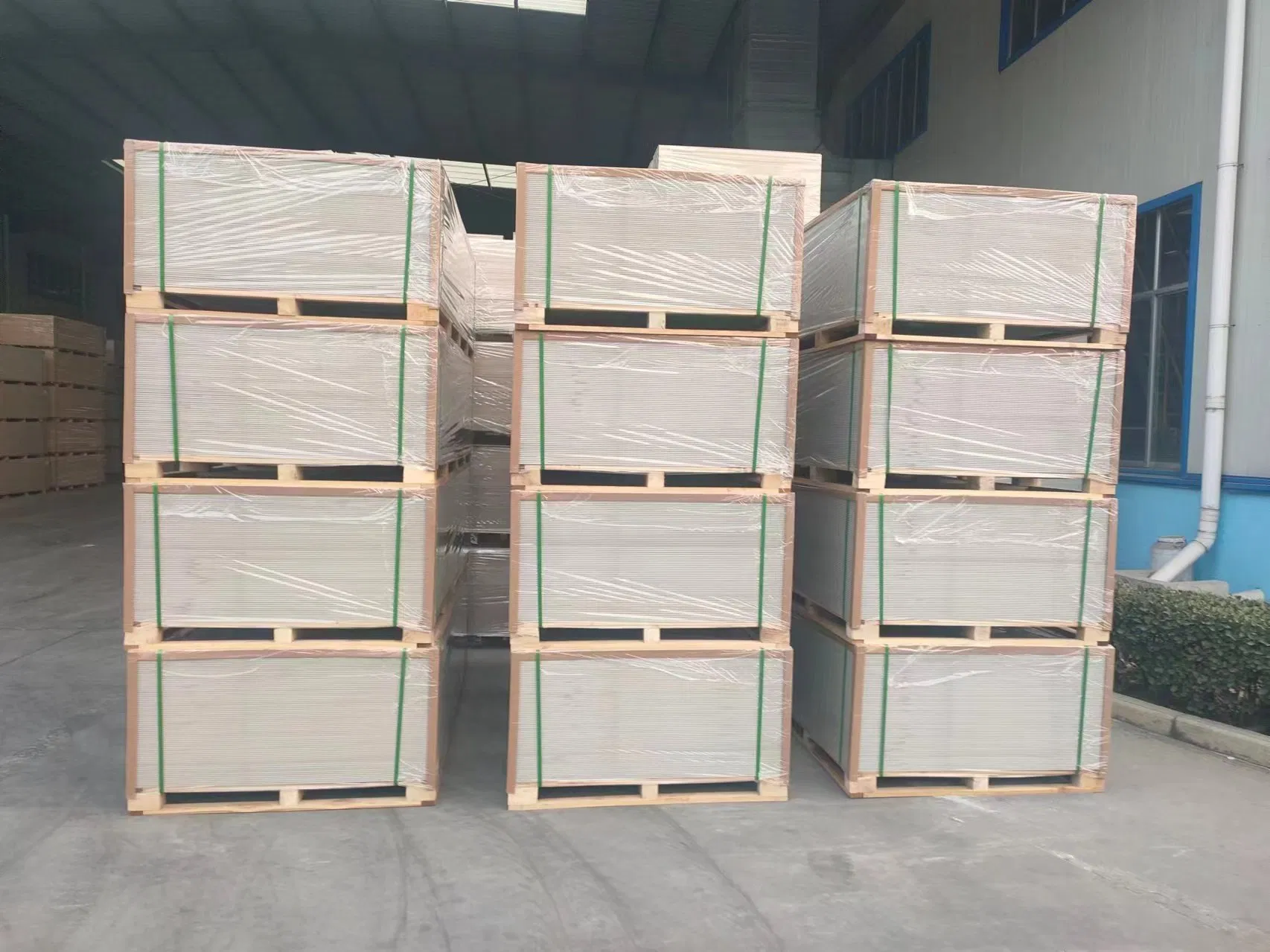

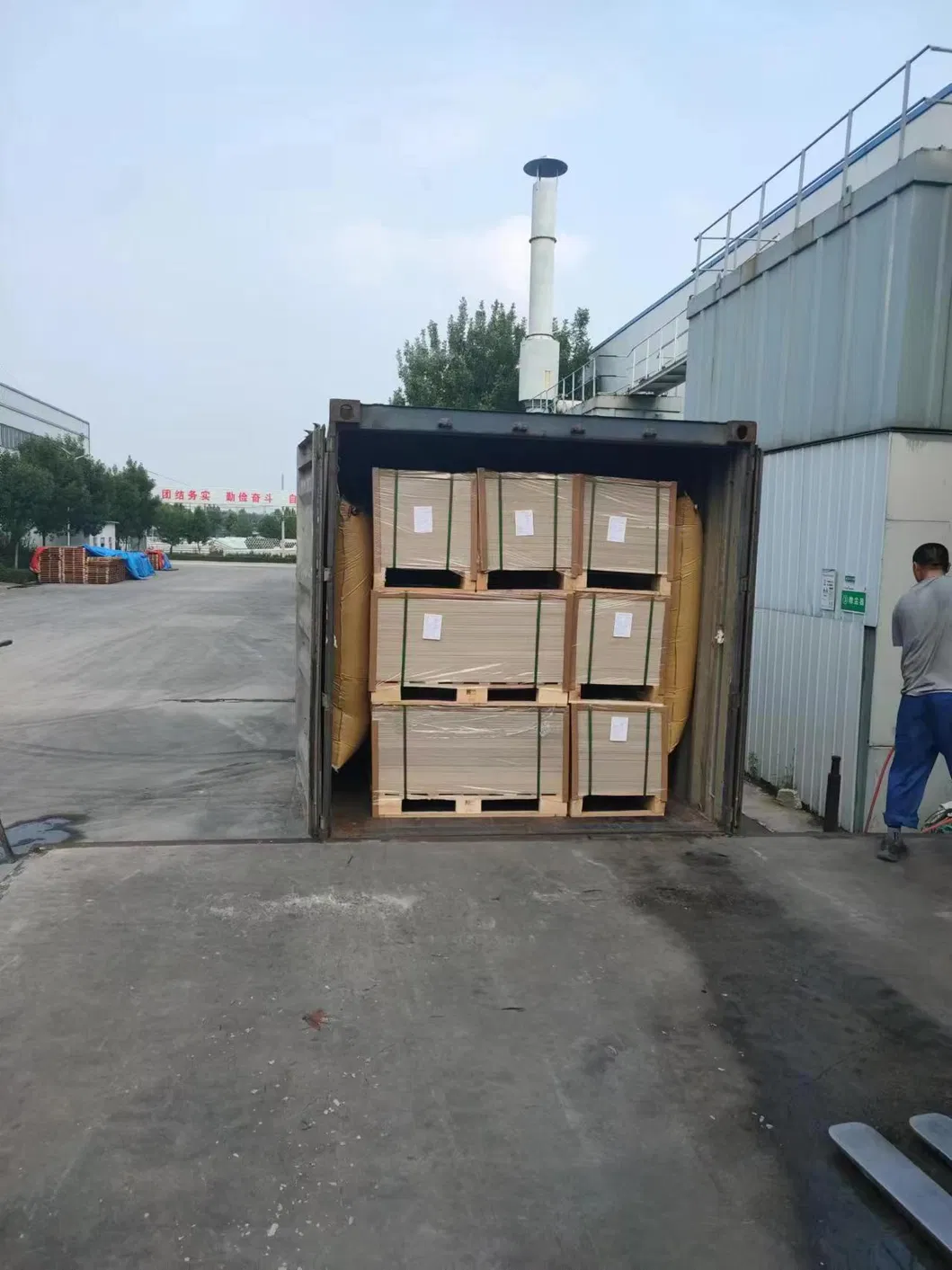

Transport Package

8 Pallets or 6 Pallets or Without Pallets

Specification

1200*2400mm / 1220*2440mm

HS Code

68118200

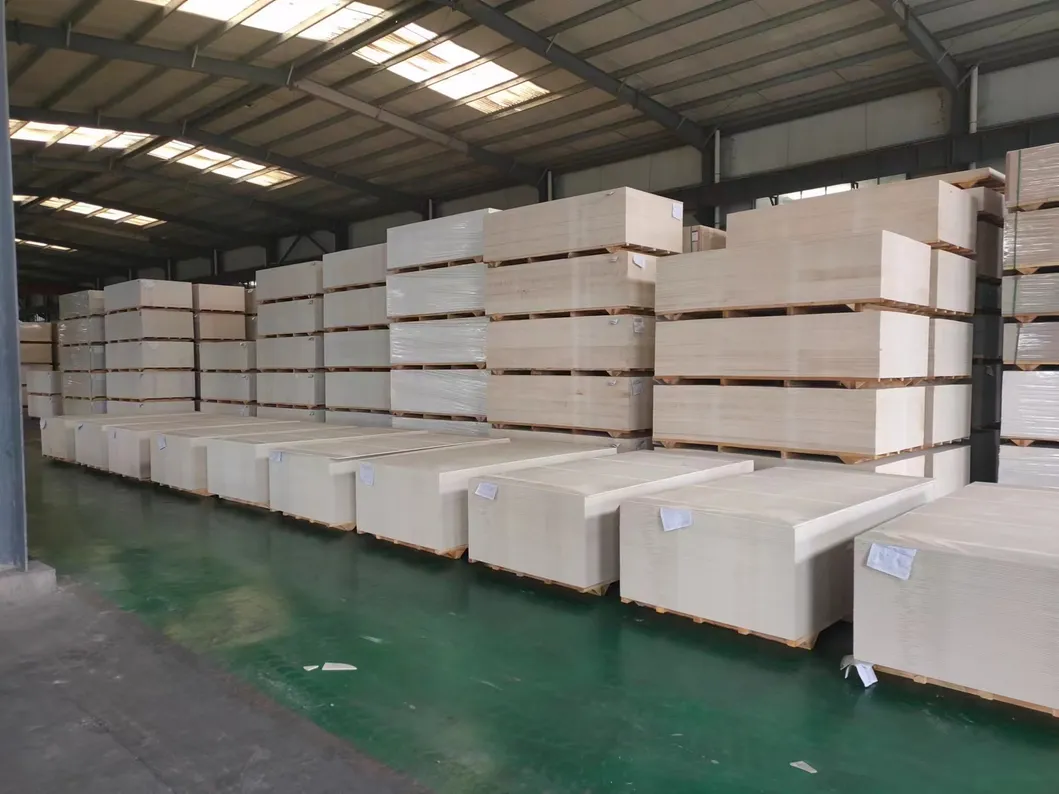

Production Capacity

2000000 Pieces/Year

★

Product Description

Main Product Range:

1) Calcium silicate board

2) Fiber cement board

3) Wood grain board

4) UV coating board

5) Ceiling tiles

UV coating board (Fluorocarbon paint panel) is a slap-up interior & exterior decorative material with high-tech green environmental protection. Based on fiber cement board and calcium silicate board, after water-proof treatment, surface with the high quality UV fluorocarbon paint, adopt the UV curing technology. Having the excellent, economical, efficient, elegant, environmental advantage.

Products size: 1200*2400mm, 1220*2440mm, other sizes according to the order.

TEST ITEMS			RESULT
PHYSICAL MECHANICS PROPERTY	DENSITY		≥ 1.4G/CM3
	WATER CONTENT		≤ 10%
	WATER ABSORPTION		≤ 28%
	WATER IMPERMEABILITY		24h duration, no formation of drops of water.
	IMPACT RESISTANCE		No penetrating crack.
	BENDING STRENGTH		>16MPA
	FREEZING RESISTANCE		No crack/delamination after 25 cycles.
	INCOMBUSTIBLE		GB8624 A GRADE
	RADIOACTIVITY	Internal index	≤ 1.0IRa
		External index	≤ 1.0Iγ

✔

Product Characteristics

Weather Resistance: Color lasting stability.

Fire Resistance: 4 hours fire-proof, Class-A1.

Water Resistance: Lower absorption, no deformation.

Pollution Resistance: Bright and clean, easy to maintain.

Scratch & Rub: High compactness, solid paint.

Corrosion Proof: Acid and alkali resistant.

♦

Technical Advantages

Equipped with 9000-ton pressing machine.
20 years production expertise with 15 years export experience.
Contributor to National Industrial Standards.
Passed ASTMC 1186 test standards and CE authentication.

◎

Recommended Application

Industrial: Factories, Warehouses.
Housing: New housing types, decoration & renovation.
Public: Hospitals, theaters, stations, airports, and halls.

Frequently Asked Questions

What materials are used in the UV coating board?

The board is constructed from a base of fiber cement or calcium silicate board, utilizing high-quality quartz sand and imported wood pulp. The surface is finished with high-quality UV fluorocarbon paint.

What is the fire rating of these panels?

The boards achieve a Class-A1 incombustibility rating, providing up to 240 minutes (4 hours) of fire resistance, making them ideal for high-safety public and industrial buildings.

Are the panels resistant to moisture and deformation?

Yes, the boards undergo a waterproof treatment. They feature low water absorption rates (≤ 28%) and high water impermeability, ensuring no deformation even in damp conditions.

Can these boards be used for exterior wall decoration?

Absolutely. Due to their high weather resistance, UV resistance, and corrosion resistance, they are suitable for both slap-up interior and exterior decorative applications.

What surface finishes and colors are available?

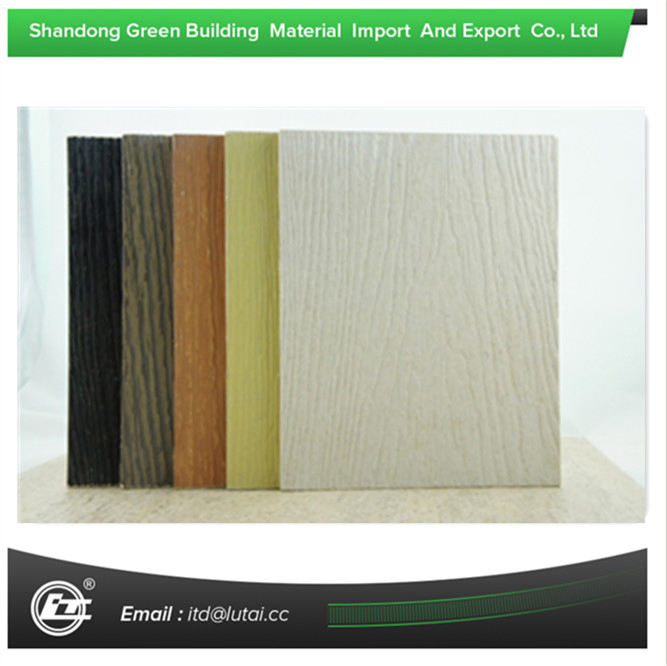

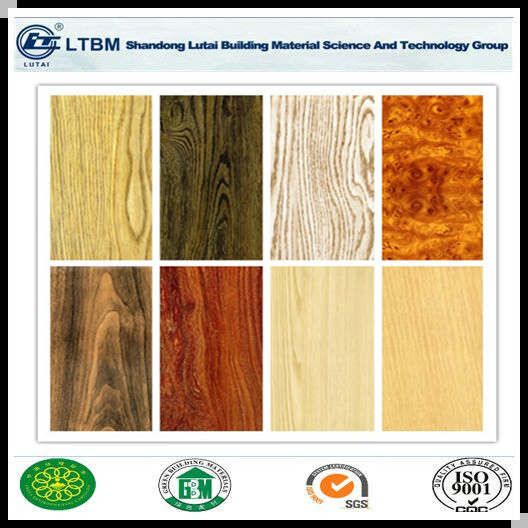

The boards come in a variety of finishes, including Stone Texture and Wood Grain. Surface finishing options include sanding and polished high-gloss UV coatings.

Which international standards do your products meet?

Our products meet several global standards, including CE certification, ISO9001, and the ASTMC 1186 test standard, ensuring high quality and reliability for international projects.
